Pre-formed Half Hinge for 3/8″ to 5/8″ Tubes

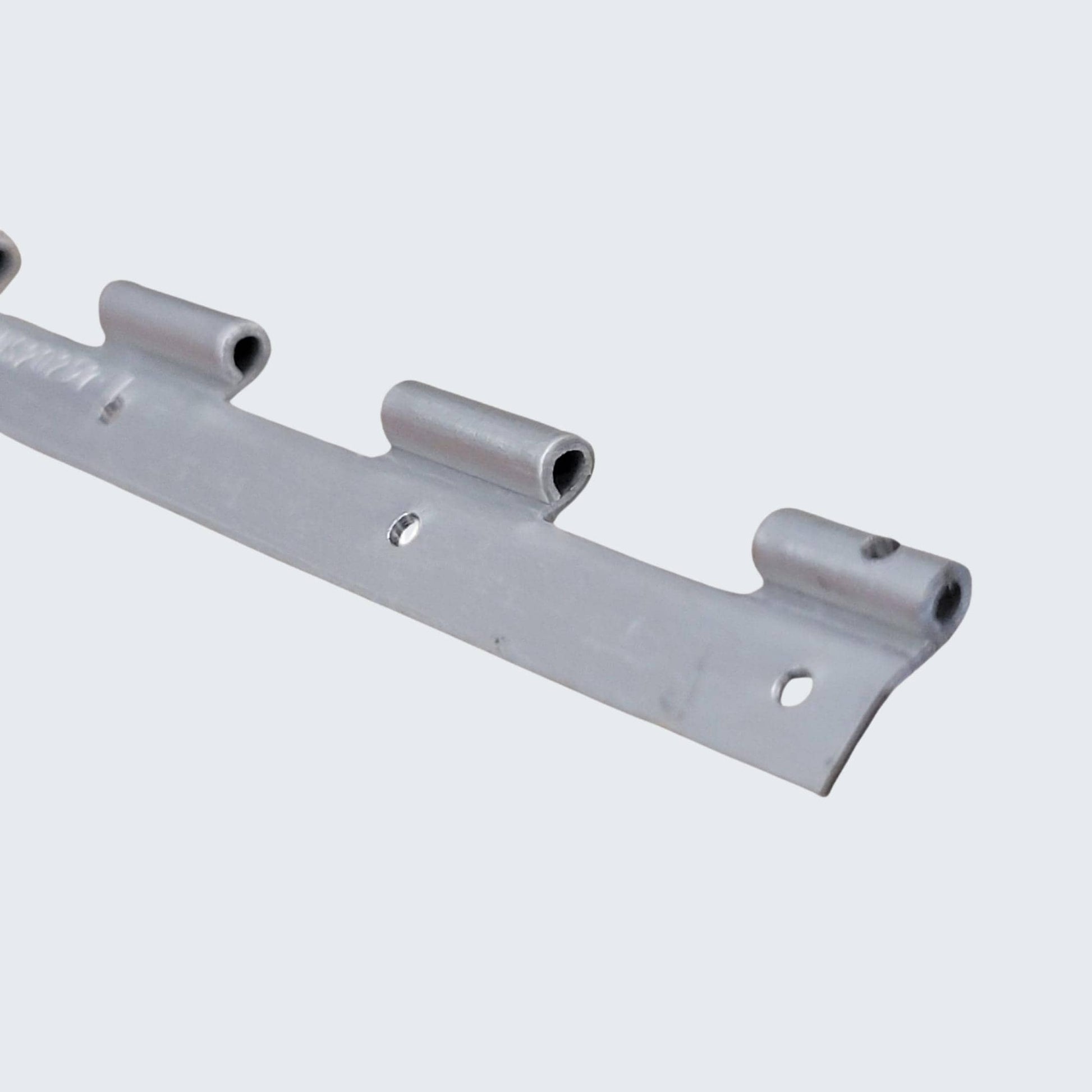

This hinge comes pre-machined, drilled, and preformed to fit on 3/8 in – 5/8 in tubes. It is designed to be riveted to fabric airplane ailerons and elevators where flat aluminum surfaces are hard to come by. Best results can be achieved by using 3/32 in aluminum blind rivets (PN 3900120). MAKE SURE THE HINGE IS ASSEMBLED TO THE MOVING CARBON-FIBER TRIM TAB TO GUARANTEE STRAIGHTNESS.

- Mil-Spec Continuous Hinge, transparent 5052 Anodized aluminum.
- Machined Length: 12 in
- Thickness: 0.032
- Open: 0.75 in
- Pin: 0.063 in (PN 3900049 not included)
- Knuckle: 0.500 in
- 12 of 1/16 in holes spaced at one interval to sync with carbon fiber trim tab perforations. Rivet with PN 3900029 rivet or PN 3900120 rivet.
- Extra 1/16 in the hole at end knuckle to house cotter pin (PN 390009).
