Standard Servo Kit

Standard Servo Kit

Part #2030007A

Regular price $130.00 USD
Regular price Sale price $130.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specifications

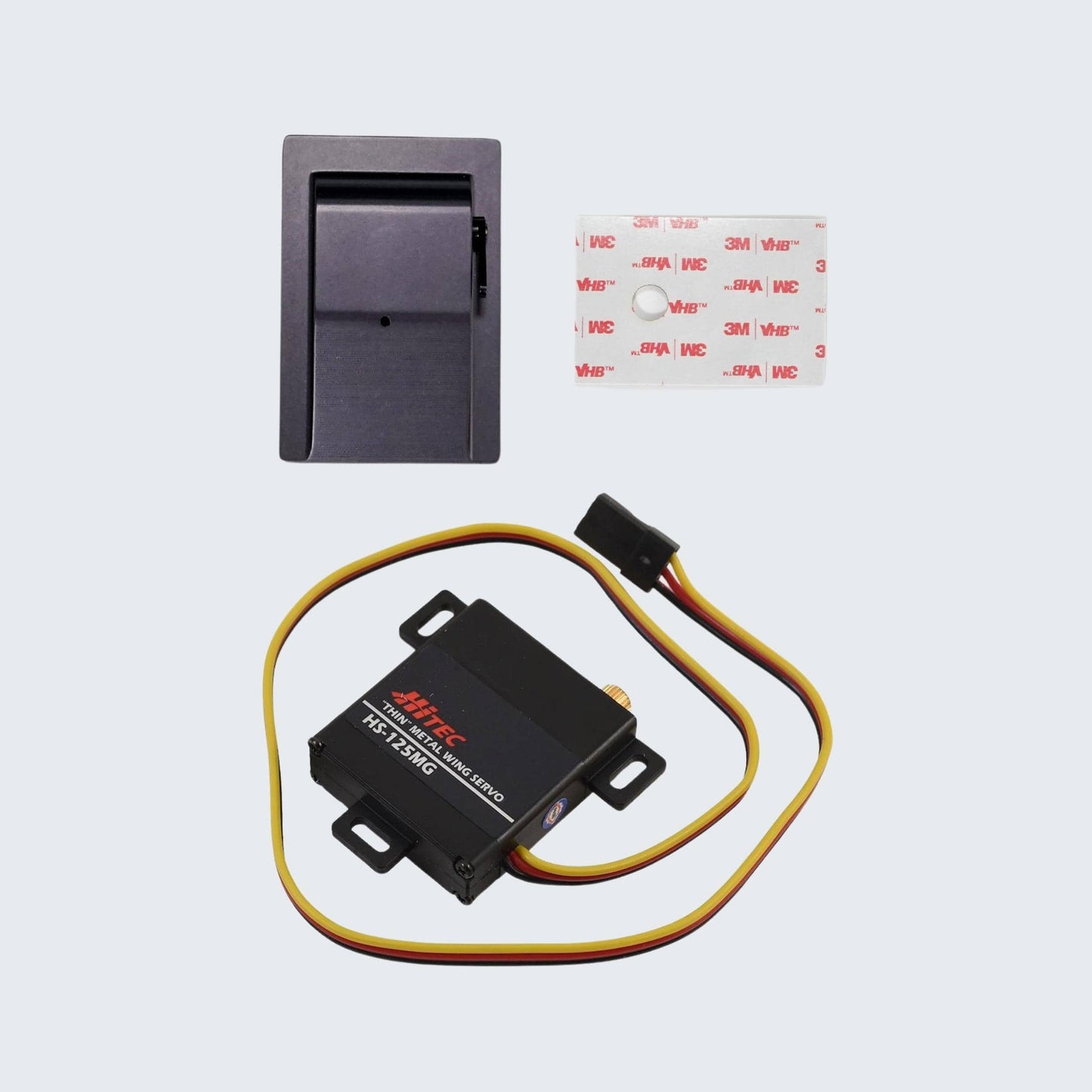

The Standard Servo Kit is the lightest of all our servos; the complete system only weighs 1.8 oz (51 grams). It can be used to adhere, rivet, or screw a servo to the fixed part of the carbon fiber trim tab. It can also be mounted remotely to alleviate the weight on the trailing edge of your Aileron/Elevator. The remote mount needs a 12 Carbon fiber reinforced 2-56 push rod assembly, part number 3900104A.

Due to its lightweight, we recommend it for fast airplanes where surfaces must be precisely balanced. It is splash-proof but not fully sealed. It can be installed beneath the Aileron/Elevator to protect it from rain. Best recommended for hangered aircraft. IP-67 Waterproof servo P/N 3900105A should be used for amphibians and unprotected aircraft.

Servo Features:

The analog HS-125MG is a super-thin servo measuring 1.2 x 0.4 x 1.3. Featuring Hitec foots MP Gear, the HS-125MG is durable and a perfect fit in the slim wings.

- Super thin wing servo
- 4 metal gears + 1 metal resin gear
- Dual ball bearings
- Gold-plated contacts
- long life potentiometer
- 3-Pole cored motor
- Torque @ 4.8V 3 kg.cm
- Torque @ 6.0V 3.5 kg.cm
- Spline 25T
- Speed @ 4.8V 0.17 sec/60°
- Speed @ 6.0V 0.13 sec/60°
- Weight 24g
